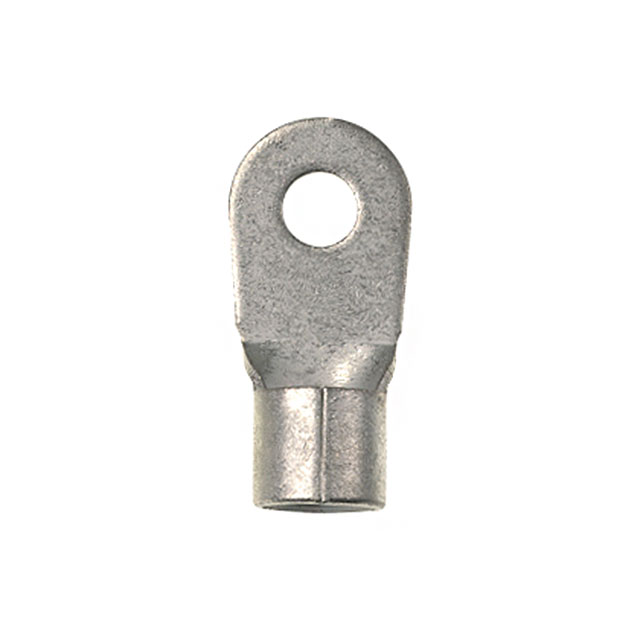

P8-8R-Q
CONN RING CIRC 8AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® P8-8R-Q is a non-insulated circular ring terminal designed for reliable electrical connections. This component features a robust copper contact material with a tin plating for excellent conductivity and corrosion resistance. Engineered with a brazed seam for enhanced durability, the P8-8R-Q accepts 8 AWG wire and terminates via crimp. The terminal is configured for an 8 stud size and offers a free-hanging (in-line) mounting type. With an overall length of 1.120 inches (28.45mm), a width of 0.420 inches (10.67mm), and a thickness of 0.040 inches (1.02mm), it is suitable for applications in industrial automation and power distribution systems. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.120"" (28.45mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.420"" (10.67mm) |
| Contact Material | Copper |
