P8-14RHT6-Q
CONN RING D-SHAPE 8AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

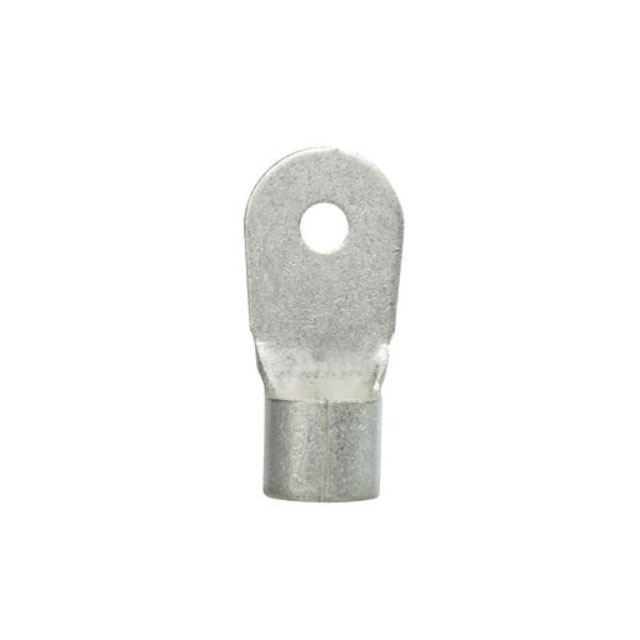

Panduit Corp Pan-Term® P8-14RHT6-Q is a non-insulated, D-shaped ring terminal connector designed for crimp termination. This component accommodates 8 AWG wire and features a 1/4" stud size for secure mounting. Constructed from copper with a nickel contact finish, it exhibits a brazed seam for enhanced durability. The terminal has an overall length of 1.140 inches (28.96mm) and a width of 0.470 inches (11.94mm) at its outer edges, with a material thickness of 0.040 inches (1.02mm). This free-hanging, in-line component is typically utilized in industrial automation, power distribution, and general electrical wiring applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.140"" (28.96mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Contact Material | Copper |
