P8-10RHT6-T
CONN RING D-SHAPE 8AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

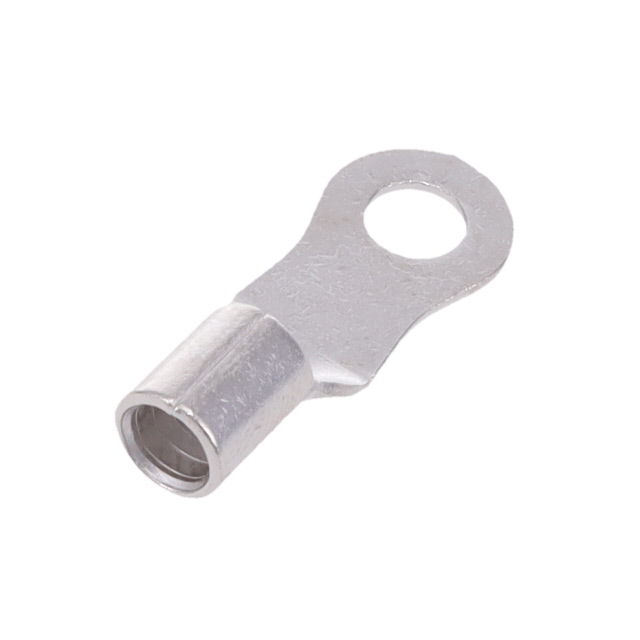

Panduit Corp Pan-Term® P8-10RHT6-T is a non-insulated, D-shaped ring terminal designed for 8 AWG wire. This crimp-style connector features a 10 stud size and a brazed seam for enhanced durability. Constructed from copper with a nickel contact finish, it offers reliable electrical connectivity. The terminal has an overall length of 1.140 inches (28.96mm) and a width of 0.420 inches (10.67mm) across its outer edges, with a material thickness of 0.040 inches (1.02mm). It is suitable for free-hanging (in-line) mounting applications. This component is commonly utilized in industrial automation, power distribution, and electrical infrastructure. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.140"" (28.96mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.420"" (10.67mm) |
| Contact Material | Copper |
