P6-8RHT6-E
CONN RING D-SHAPE 6AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

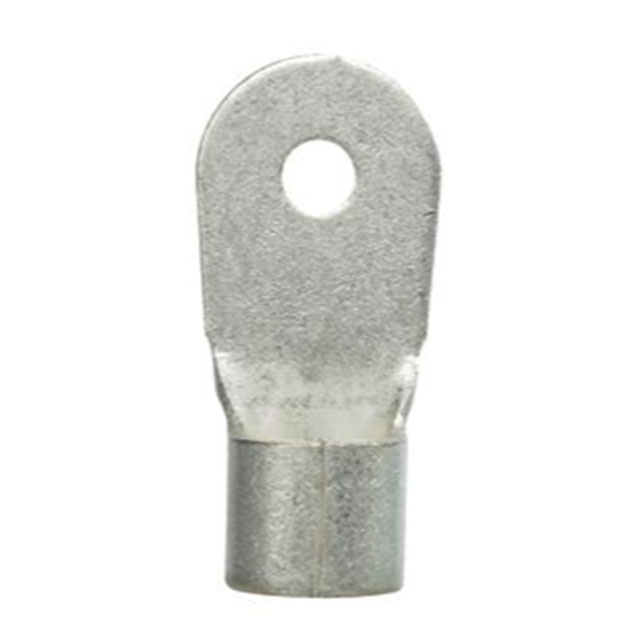

Panduit Corp Pan-Term® P6-8RHT6-E is a non-insulated, D-shaped ring terminal connector designed for 6 AWG wire. This component facilitates a secure crimp termination for #8 stud sizes and features a brazed seam for enhanced durability. Constructed from copper with a nickel contact finish, it offers reliable connectivity. The overall length is 1.210 inches (30.73mm), with a width of 0.470 inches (11.94mm) and a thickness of 0.045 inches (1.14mm). Its free-hanging, in-line mounting type makes it suitable for various industrial applications, including electrical infrastructure and automotive systems where robust terminal connections are critical. This part is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.210"" (30.73mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Contact Material | Copper |
