P6-38RHT6-E
CONN RING D-SHAPE 6AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

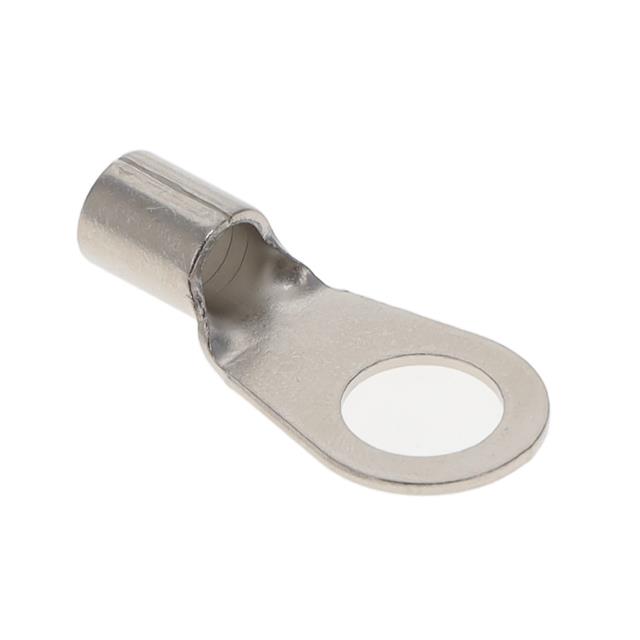

Panduit Corp Pan-Term® P6-38RHT6-E is a non-insulated, D-shaped ring terminal designed for secure electrical connections. Featuring a brazed seam for enhanced durability, this terminal accommodates 6 AWG wire and is rated for a 3/8 stud size. The overall length is 1.330 inches (33.78mm) with a width of 0.620 inches (15.75mm) and a thickness of 0.045 inches (1.14mm). Constructed from copper with a nickel contact finish, it ensures reliable conductivity. The free-hanging mounting type allows for in-line termination via crimping. This component is suitable for applications in electrical infrastructure, manufacturing automation, and industrial equipment. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.330"" (33.78mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Contact Material | Copper |
Request a Quote
