P6-12RHT6-E
CONN RING D-SHAPE 6AWG #1/2Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

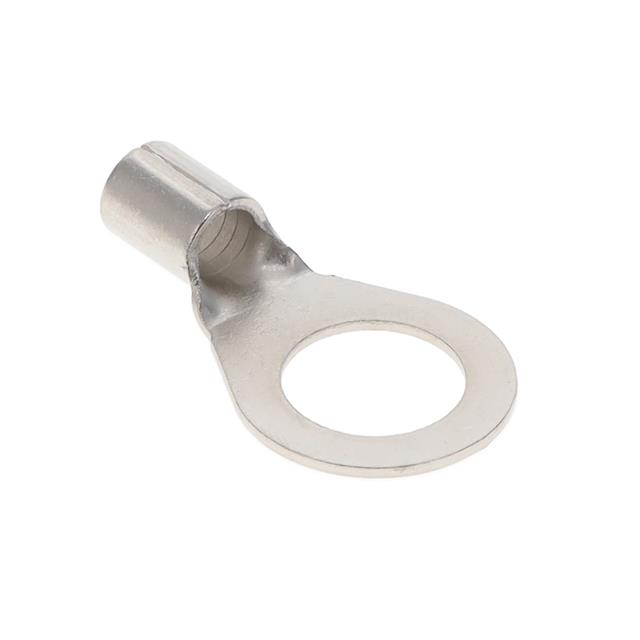

Panduit Corp Pan-Term® P6-12RHT6-E is a non-insulated, D-shaped ring terminal connector designed for robust electrical connections. This component utilizes a brazed seam construction for enhanced durability and reliability in demanding applications. It is engineered to accommodate 6 AWG wire, with a stud size of 1/2 inch, ensuring secure mating with 1/2 inch studs. The terminal features a copper contact material with a nickel finish for optimal conductivity and corrosion resistance. With an overall length of 1.430 inches (36.32mm), a width of 0.820 inches (20.83mm), and a thickness of 0.045 inches (1.14mm), it offers substantial material for secure crimping. The free-hanging mounting type allows for inline termination flexibility. This Panduit Corp component is commonly employed in industrial automation, power distribution, and heavy equipment manufacturing sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.430"" (36.32mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.820"" (20.83mm) |
| Contact Material | Copper |
