P6-10RHT6-T
CONN RING D-SHAPE 6AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

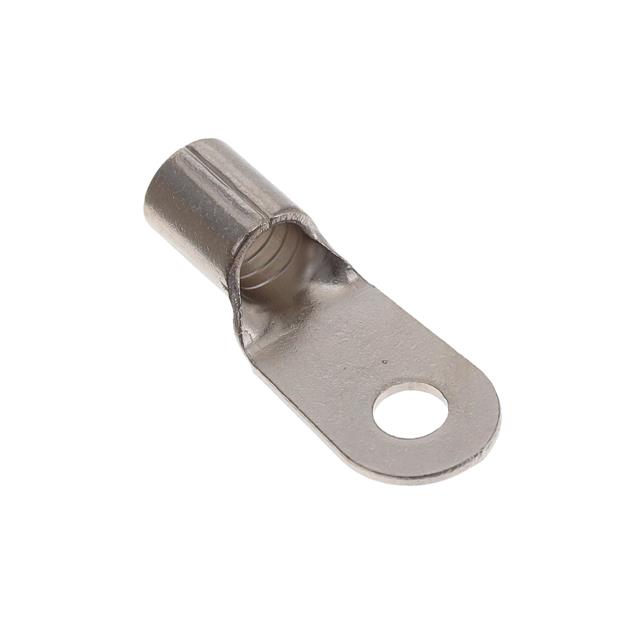

Panduit Corp Pan-Term® P6-10RHT6-T is a non-insulated, D-shaped ring terminal designed for crimp termination. This component utilizes a brazed seam construction for enhanced durability and is fabricated from high-conductivity copper with a nickel contact finish. Engineered for 6 AWG wire, it accommodates a #10 stud size. The overall length is 1.210 inches (30.73mm) with an outer width of 0.470 inches (11.94mm) and a thickness of 0.045 inches (1.14mm). This terminal is suitable for free hanging (in-line) mounting applications. It is commonly specified in power distribution, industrial automation, and electrical infrastructure projects where reliable wire termination is critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.210"" (30.73mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Contact Material | Copper |
