P4-38RHT6-E
CONN RING D-SHAPE 4AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

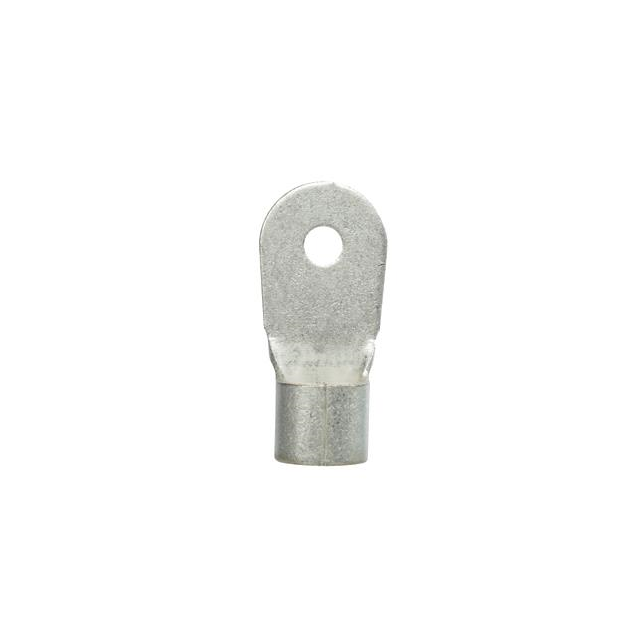

Panduit Corp Pan-Term® P4-38RHT6-E is a non-insulated, D-shaped ring terminal connector designed for 4 AWG wire. This component features a 3/8 stud size and a crimp termination method. The contact material is copper with a nickel finish, and it incorporates a brazed seam for enhanced durability. The overall length is 1.400 inches (35.56mm) with an outer width of 0.680 inches (17.27mm) and a thickness of 0.050 inches (1.27mm). The mounting type is free hanging (in-line). This terminal is commonly utilized in industrial power distribution, automotive applications, and heavy equipment manufacturing. Packaging is provided in bulk.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.400"" (35.56mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
