P4-12RHT6-E
CONN RING D-SHAPE 4AWG #1/2Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

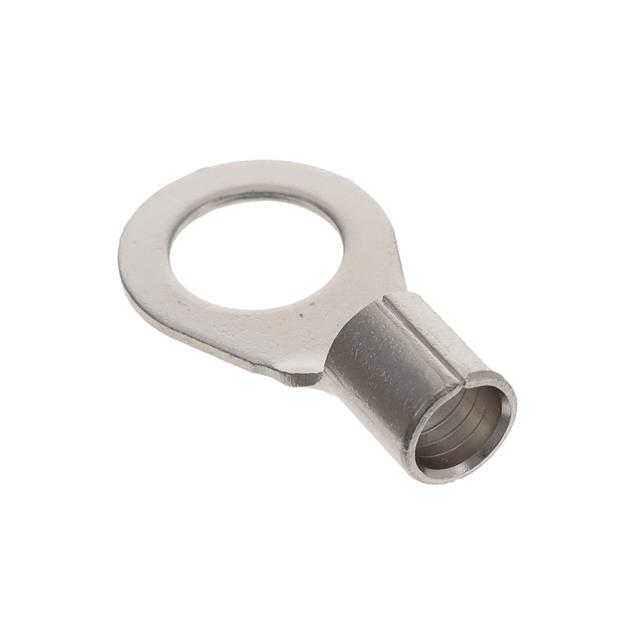

Panduit Corp Pan-Term® P4-12RHT6-E is a non-insulated, D-shaped ring terminal designed for crimp termination. This component features a brazed seam for enhanced durability and is constructed from copper with a nickel contact finish. Engineered for 4 AWG wire, it accommodates a 1/2 stud size and offers a free hanging (in-line) mounting type. The overall length is 1.550 inches (39.37mm), with a width of 0.860 inches (21.84mm) and a thickness of 0.050 inches (1.27mm). This terminal is commonly utilized in industrial automation, power distribution, and automotive applications where secure electrical connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.550"" (39.37mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.860"" (21.84mm) |
| Contact Material | Copper |
