P4-12R-T
CONN RING CIRC 4AWG #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

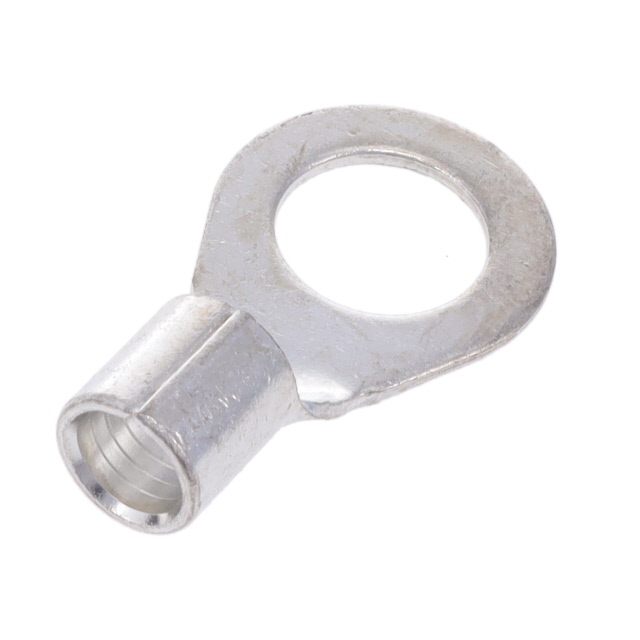

Panduit Corp Pan-Term® P4-12R-T is a non-insulated, circular ring terminal designed for robust electrical connections. This component utilizes a crimp termination method and is suitable for 4 AWG wire. Featuring a 1/2 inch stud size, it provides a secure and reliable mating surface. The terminal's construction from copper with a tin contact finish ensures excellent conductivity and corrosion resistance. Its brazed seam construction adds to its durability under demanding conditions. The overall length is 1.550 inches (39.37mm) with a width of 0.860 inches (21.84mm) and a thickness of 0.050 inches (1.27mm). This Panduit Corp Pan-Term® ring terminal is commonly employed in industrial automation, power distribution, and heavy equipment manufacturing applications where dependable wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.550"" (39.37mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.860"" (21.84mm) |
| Contact Material | Copper |
