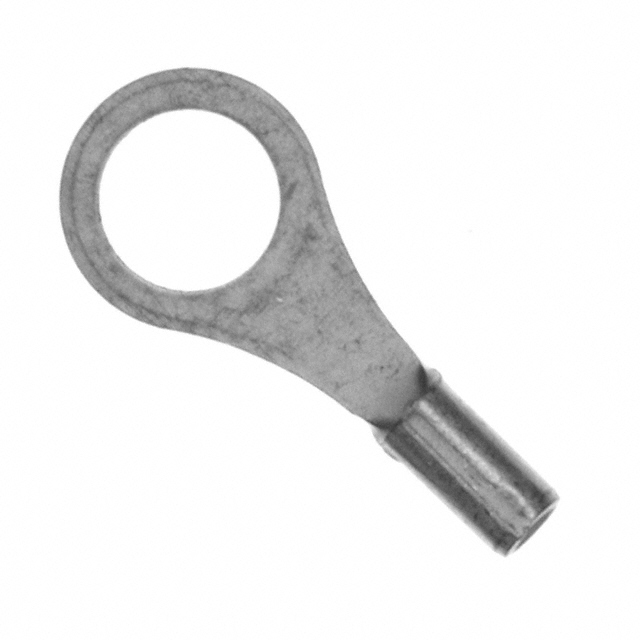

P22-8R-C
CONN RING CIRC 22-26AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® P22-8R-C is a non-insulated ring terminal designed for reliable wire termination. This circular connector features a crimp termination method and is suitable for wire gauges ranging from 22 to 26 AWG. The terminal accommodates an 8 stud size, ensuring secure fastening. Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The brazed seam design enhances durability under demanding conditions. With an overall length of 0.630 inches (16.00mm) and a width of 0.260 inches (6.60mm), it provides a compact solution for various applications. The free hanging mounting type allows for flexible installation. This component is commonly utilized in industrial automation, telecommunications, and automotive sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.630"" (16.00mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.260"" (6.60mm) |
| Contact Material | Copper |
Request a Quote
