P22-4R-C
CONN RING CIRC 22-26AWG #4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

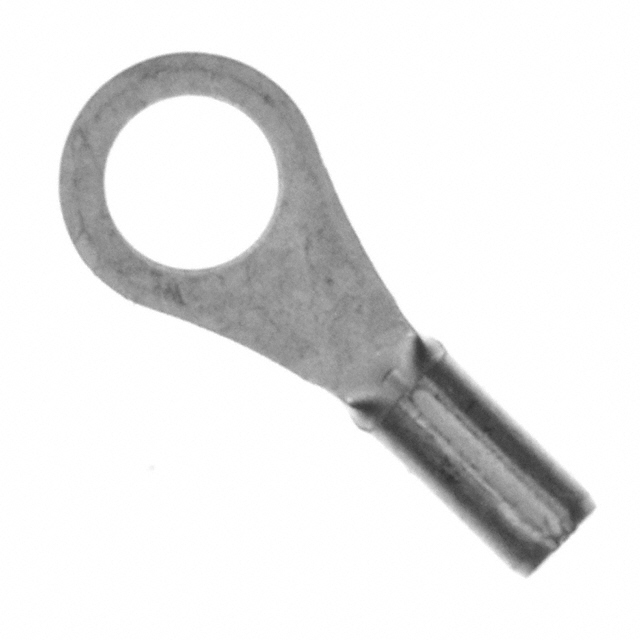

Panduit Corp Pan-Term® P22-4R-C is a circular ring terminal designed for reliable electrical connections. This non-insulated connector accommodates wire gauges from 22 to 26 AWG and features a 4 AWG stud size for secure mounting. Constructed from copper with a tin contact finish, it ensures excellent conductivity and corrosion resistance. The terminal utilizes a brazed seam for enhanced durability during crimping. With a free-hanging, in-line mounting type and an overall length of 0.520 inches (13.21mm), it is suitable for various applications in the automotive, industrial, and telecommunications sectors. The terminal's outer dimensions include a width of 0.205 inches (5.20mm) and a thickness of 0.020 inches (0.51mm). This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.520"" (13.21mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.205"" (5.20mm) |
| Contact Material | Copper |
