P22-2R-C
CONN RING CIRC 22-26AWG #2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

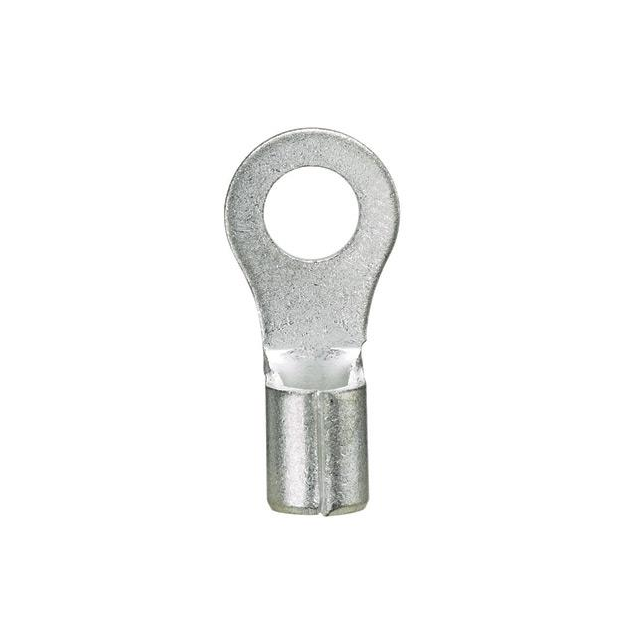

Panduit Corp Pan-Term® P22-2R-C is a non-insulated circular ring terminal designed for crimp termination. This component accommodates wire gauges from 22 to 26 AWG and features a tin-plated copper contact for reliable conductivity. The terminal boasts a brazed seam construction for enhanced durability and a free hanging (in-line) mounting type. With a stud size of 2, it is suitable for applications requiring secure connections. The overall length is 0.520 inches (13.21mm) and the thickness is 0.020 inches (0.51mm), with an outer width of 0.205 inches (5.20mm). This Panduit Corp component is commonly utilized in industrial automation and electrical power distribution systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 2 Stud |
| Length - Overall | 0.520"" (13.21mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.205"" (5.20mm) |
| Contact Material | Copper |
