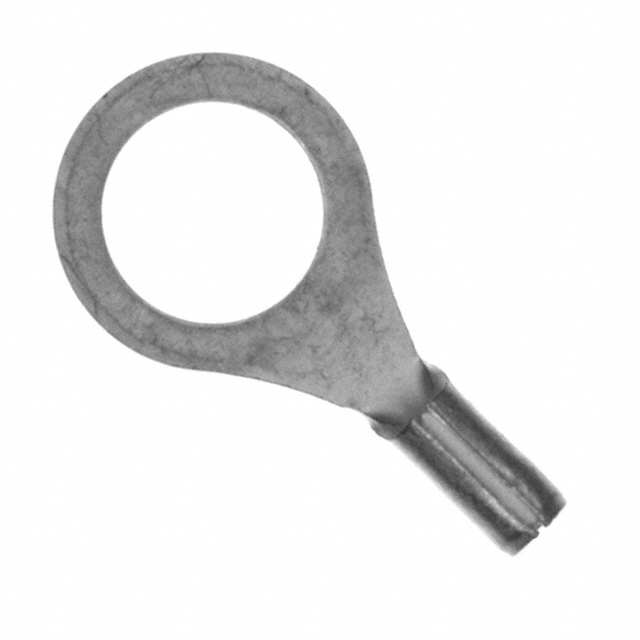

P22-10R-C
CONN RING CIRC 22-26AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® P22-10R-C is a non-insulated circular ring terminal designed for 22-26 AWG wire. This component features a 10 stud size and a crimp termination method. Constructed from copper with a tin contact finish, it offers a brazed seam for enhanced durability. The overall length is 0.630 inches (16.00mm) with a width of 0.315 inches (8.00mm) and a thickness of 0.020 inches (0.51mm). The free hanging (in-line) mounting type makes it suitable for various applications. This terminal is commonly utilized in the automotive and industrial automation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.630"" (16.00mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.315"" (8.00mm) |
| Contact Material | Copper |
