P2-14RHT6-X
CONN RING D-SHAPE 2AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

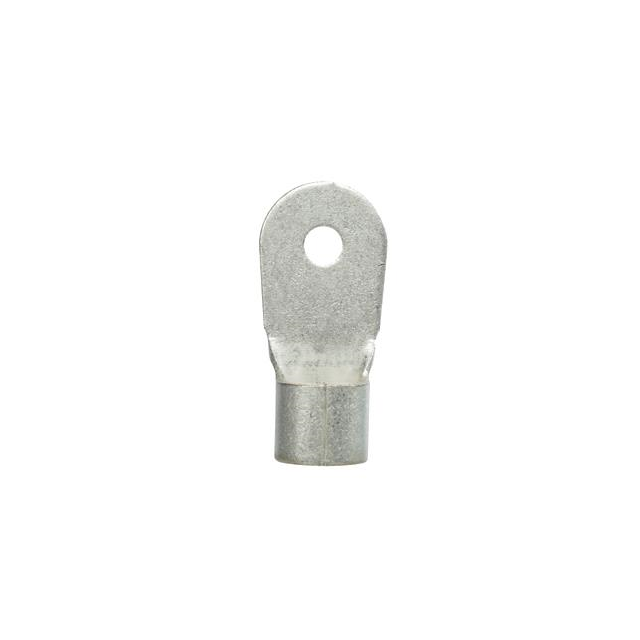

Panduit Corp Pan-Term® P2-14RHT6-X is a non-insulated, D-shaped ring terminal designed for 2 AWG wire. This crimp-style connector features a 1/4 stud size and a brazed seam for enhanced durability. Constructed from copper with a nickel contact finish, it offers reliable conductivity. The terminal has an overall length of 1.460 inches (37.08mm), a width of 0.680 inches (17.27mm), and a thickness of 0.060 inches (1.52mm). Its free-hanging mounting type facilitates in-line connections. This component is suitable for applications in industrial power distribution and heavy-duty electrical connections. The P2-14RHT6-X is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.460"" (37.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
