P2-12R-T
CONN RING CIRC 2AWG #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

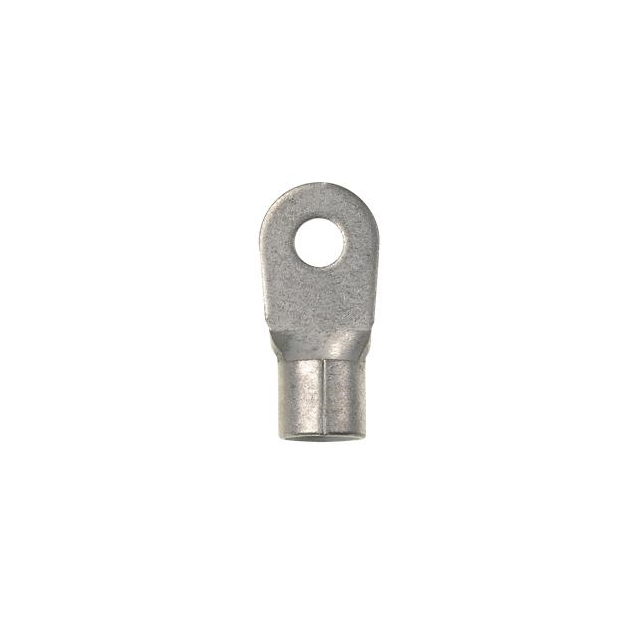

Panduit Corp Pan-Term® P2-12R-T is a non-insulated circular ring terminal designed for crimp termination. This component accommodates 2 AWG wire and features a 1/2" stud size for secure mounting. Constructed from copper with a tin contact finish, it offers robust conductivity. The P2-12R-T is engineered with a brazed seam for enhanced durability. Its overall length is 0.155" (3.94mm) with an outer width of 0.860" (21.84mm) and a thickness of 0.060" (1.52mm). This terminal is suitable for applications in industrial automation, power distribution, and electrical infrastructure. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 0.155"" (3.94mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.860"" (21.84mm) |
| Contact Material | Copper |
