P2-10RHT6-X
CONN RING D-SHAPE 2AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

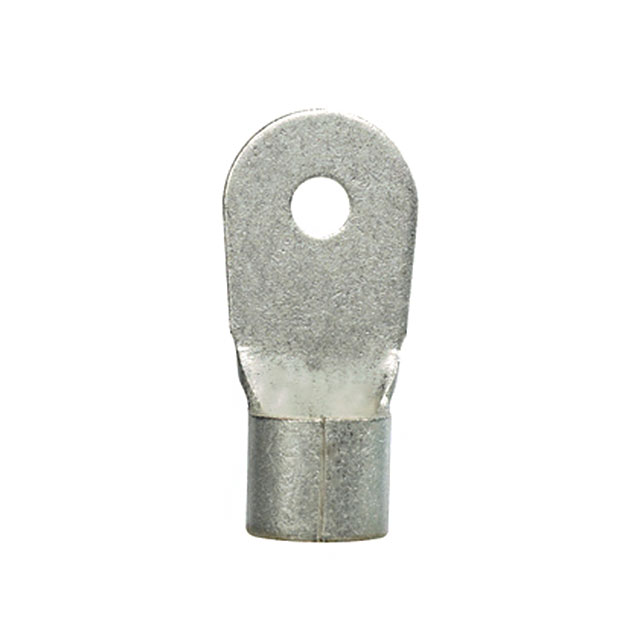

Panduit Corp Pan-Term® P2-10RHT6-X is a non-insulated D-shaped ring terminal designed for robust crimp termination. This component features a copper contact material with a nickel finish, ensuring excellent conductivity and durability. The brazed seam construction provides superior mechanical strength for demanding applications. Engineered for 2 AWG wire, it accommodates a #10 stud size and offers a stud/tab size of 10. With an overall length of 1.460 inches (37.08mm) and a thickness of 0.060 inches (1.52mm), its 0.680-inch (17.27mm) outer edge width facilitates secure connections. The free-hanging mounting type allows for flexible in-line installation. This terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable electrical connections are paramount. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.460"" (37.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
