P2-10R-X
CONN RING CIRC 2AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

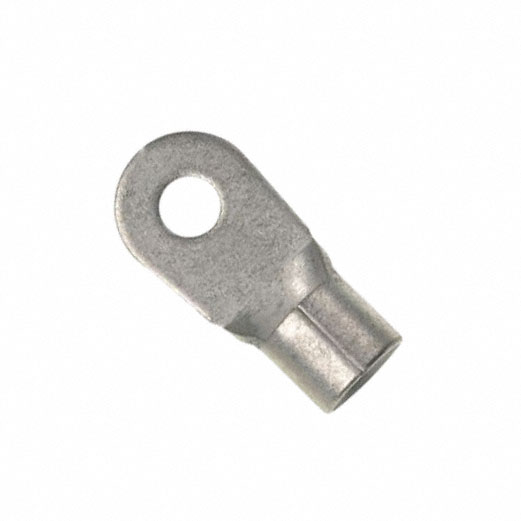

Panduit Corp Pan-Term® P2-10R-X is a non-insulated, circular ring terminal connector designed for 2 AWG wire. This component features a brazed seam for enhanced durability and a tin-plated copper contact for reliable conductivity. The terminal is engineered for a 10 stud size and utilizes a crimp termination method. With an overall length of 1.460 inches (37.08mm) and a width of 0.680 inches (17.27mm), it offers a 0.060 inch (1.52mm) thickness. The free-hanging (in-line) mounting type facilitates installation in various configurations. This Panduit Corp component is commonly employed in industrial automation, power distribution, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.460"" (37.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
