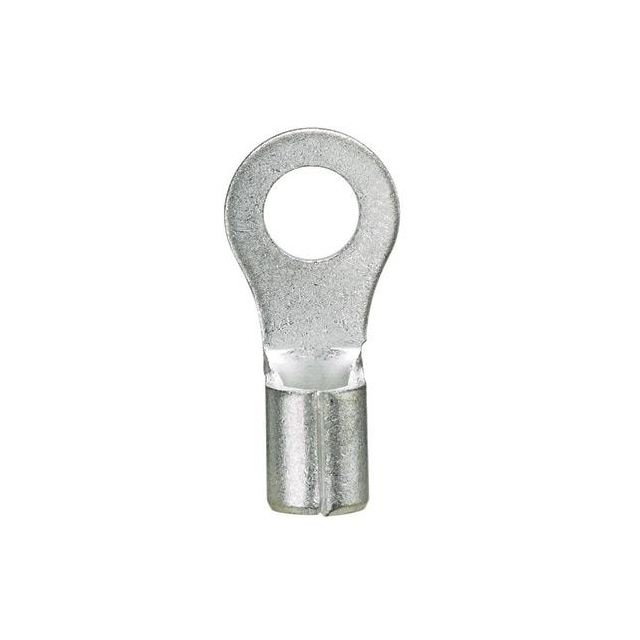

P18-56R-M
CONN RING CIRC 18-22AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp P18-56R-M is a non-insulated circular ring terminal from the Pan-Term® series. Designed for crimp termination, this component features a 5/16 stud size and accommodates wire gauges from 18 to 22 AWG. Constructed from copper with a tin contact finish, it offers a brazed seam and serrated termination for enhanced conductivity and reliability. The overall length is 0.910 inches (23.11mm), with a width of 0.460 inches (11.68mm) and a thickness of 0.030 inches (0.76mm). This terminal is suitable for free hanging (in-line) mounting configurations and is supplied in bulk packaging. Applications for this component are prevalent in industrial automation, power distribution, and automotive sectors where robust electrical connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 0.910"" (23.11mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
