P18-4R-C
CONN RING CIRC 18-22AWG #4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

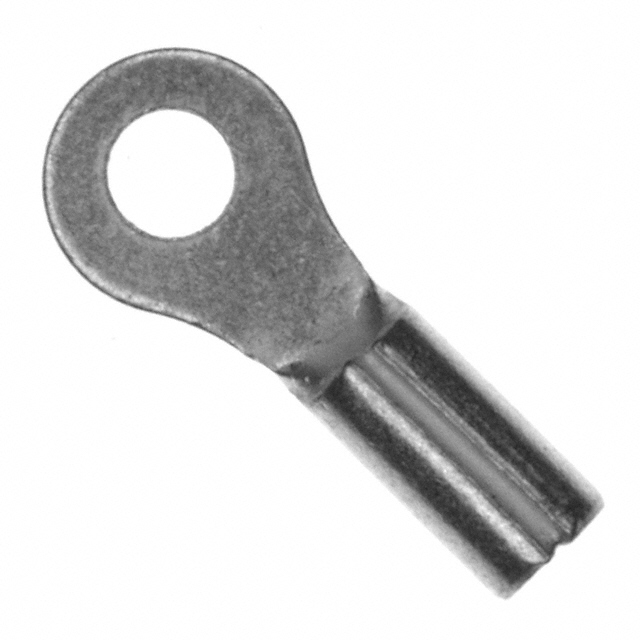

Panduit Corp P18-4R-C is a non-insulated circular ring terminal from the Pan-Term® series. This component features a #4 stud size and is designed for crimp termination of wire gauges between 18 and 22 AWG. The terminal is constructed from copper with a tin contact finish, ensuring reliable conductivity. Key features include a brazed seam for enhanced durability and a serrated termination to improve wire grip and prevent slippage. The overall length is 0.620 inches (15.75mm), with an outer width of 0.250 inches (6.35mm) and a thickness of 0.030 inches (0.76mm). Mounting is free hanging (in-line). This terminal is commonly utilized in industrial automation, telecommunications infrastructure, and automotive electrical systems. The P18-4R-C is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.620"" (15.75mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
