P18-12R-C
CONN RING CIRC 18-22AWG #1/2Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

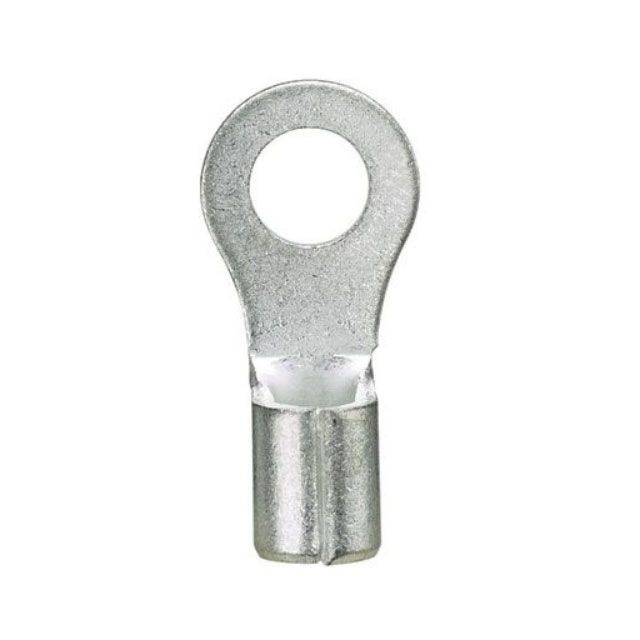

Panduit Corp Pan-Term® P18-12R-C is a non-insulated circular ring terminal designed for crimp termination. This component accommodates wire gauges from 18 to 22 AWG and features a 1/2 inch stud size. Constructed from copper with a tin contact finish, it offers a brazed seam for enhanced durability and serrated termination for improved wire retention. The overall length is 1.200 inches (30.48mm) with a thickness of 0.030 inches (0.76mm) and an outer width of 0.720 inches (18.29mm). This terminal is suitable for free-hanging (in-line) mounting applications. It is commonly utilized in industrial automation, power distribution, and automotive sectors where reliable electrical connections are critical. Packaged in bulk.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.200"" (30.48mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.720"" (18.29mm) |
| Contact Material | Copper |
Request a Quote
