P14-8RHT6-M
CONN RING CIRC 14-18AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

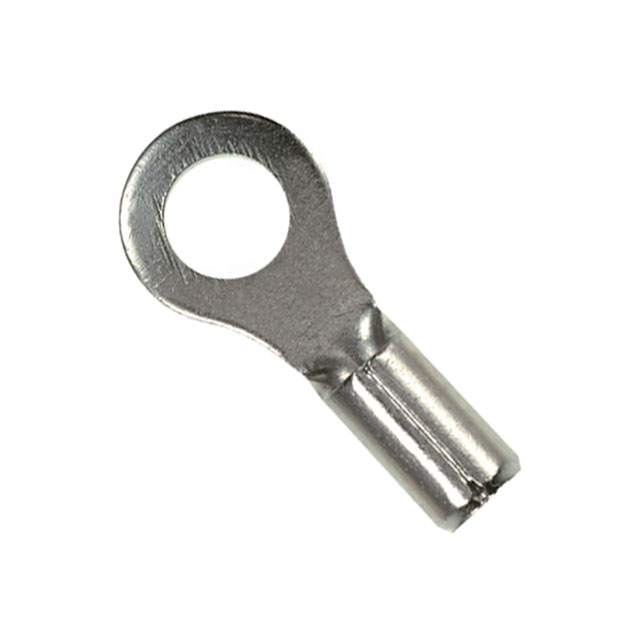

Panduit Corp Pan-Term® P14-8RHT6-M is a non-insulated circular crimp ring terminal designed for 14-18 AWG wire. This component features a copper contact material with a nickel finish and a brazed seam for enhanced durability. The terminal has a serrated termination for improved wire grip and is suitable for an 8 stud size. With an overall length of 0.710 inches (18.03mm) and a thickness of 0.030 inches (0.76mm), it offers a width of 0.310 inches (7.87mm) across its outer edges. The P14-8RHT6-M is a free-hanging, in-line component commonly utilized in industrial automation, power distribution, and telecommunications applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-18 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.710"" (18.03mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
