P12-6HDR-L
CONN RING CIRC 12-16AWG #6 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

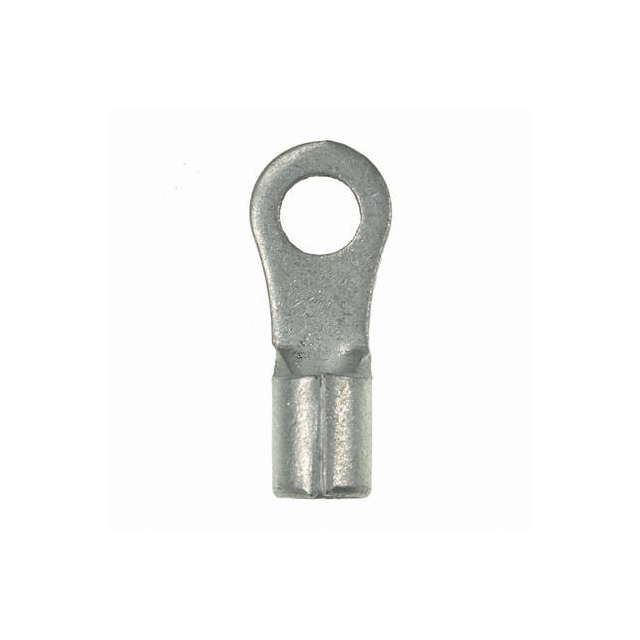

Panduit Corp Pan-Term® P12-6HDR-L is a non-insulated, heavy-duty circular ring terminal designed for reliable wire termination. This component features a brazed seam construction for enhanced durability and a tin-plated copper contact for excellent conductivity. Engineered for wire gauges ranging from 12 to 16 AWG, it accommodates a #6 stud size. The terminal has an overall length of 0.780 inches (19.81mm), an outer width of 0.310 inches (7.87mm), and a thickness of 0.050 inches (1.27mm). Its free hanging (in-line) mounting type is suitable for various applications. This Panduit Corp Pan-Term® ring terminal is commonly utilized in industrial automation, automotive, and power distribution systems where robust and secure electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
Request a Quote
