P12-38HDR-L
CONN RING CIRC 12-16AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

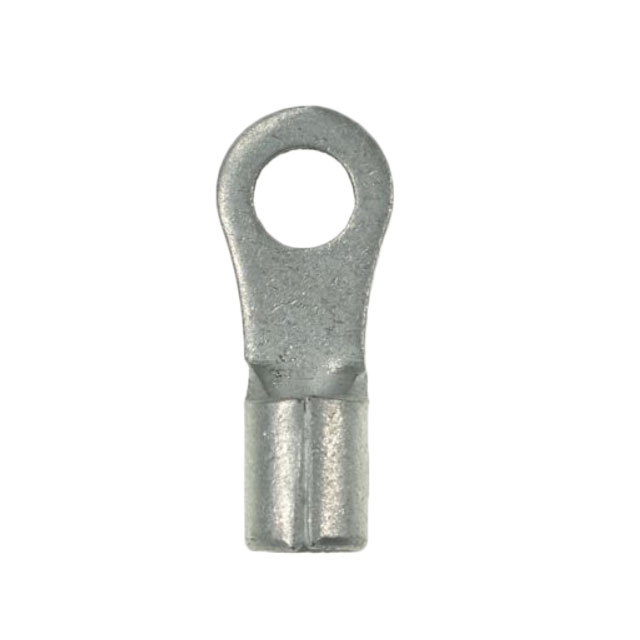

Panduit Corp Pan-Term® P12-38HDR-L is a heavy-duty ring terminal designed for secure electrical connections. This non-insulated, circular crimp terminal accommodates wire gauges from 12 to 16 AWG, featuring a 3/8 stud size for robust mounting. Constructed from copper with a tin contact finish, it ensures efficient conductivity and corrosion resistance. The brazed seam construction provides enhanced durability for demanding applications. With an overall length of 1.040 inches (26.42mm) and a thickness of 0.050 inches (1.27mm), this terminal offers substantial material for reliable crimp termination. The outer width measures 0.580 inches (14.73mm). Its free hanging (in-line) mounting type facilitates flexible installation. This component is suitable for use in industries such as industrial automation, power distribution, and heavy equipment manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.040"" (26.42mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
