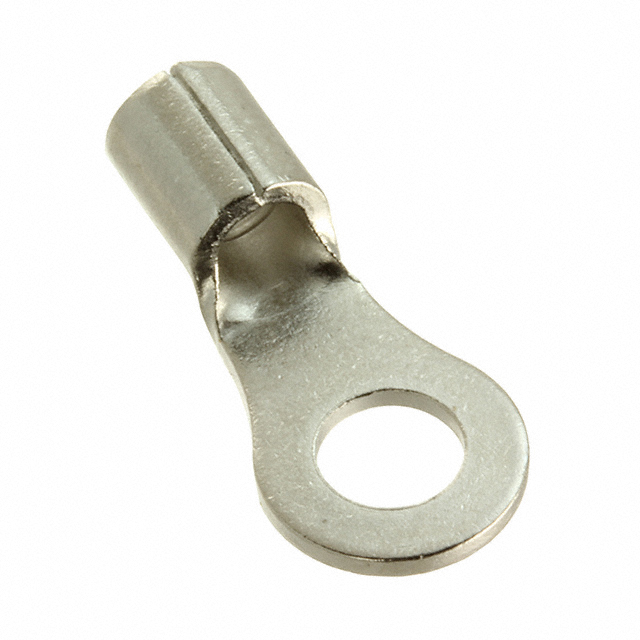

P10-10RHT6-E
CONN RING CIRC 10-12AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® P10-10RHT6-E is a circular ring terminal connector designed for crimp termination. This non-insulated component accommodates wire gauges from 10 to 12 AWG and features a #10 stud size. Constructed from copper with a nickel contact finish, it offers a brazed seam for enhanced durability and serrated termination for superior electrical contact. The overall length is 0.810 inches (20.57mm) with an outer width of 0.380 inches (9.65mm) and a terminal thickness of 0.040 inches (1.02mm). This component is suitable for free hanging (in-line) applications and is supplied in bulk packaging. It finds application in industries such as industrial automation, telecommunications, and power distribution.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.810"" (20.57mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Contact Material | Copper |
