P10-10R-Q
CONN RING CIRC 10-14AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

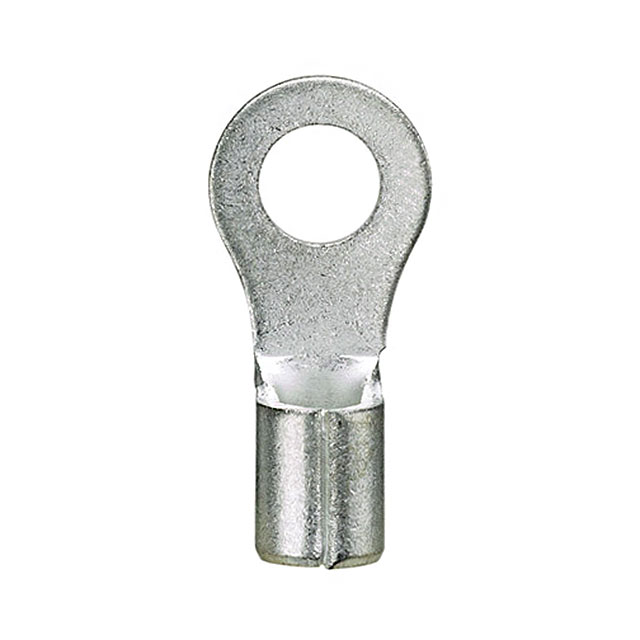

Panduit Corp Pan-Term Series P10-10R-Q is a non-insulated circular ring terminal designed for crimp termination. This component accommodates wire gauges from 10 to 14 AWG and features a 10 stud size. Constructed from copper with a tin contact finish, it offers a brazed seam for enhanced durability and a serrated termination to prevent wire slippage. The overall length is 0.810 inches (20.57mm), with a thickness of 0.040 inches (1.02mm) and an outer width of 0.380 inches (9.65mm). Its free hanging (in-line) mounting type makes it suitable for various electrical connections. This terminal is commonly utilized in industrial automation, power distribution, and automotive applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-14 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.810"" (20.57mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Contact Material | Copper |
