LCMAX95-10-L
CONN TERM RECT RING 95MM #M10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp LCMAX series ring terminal connector, part number LCMAX95-10-L. This non-insulated, flat-sided, tubular connector is designed for 95mm² wire gauge and features an M10 stud size. The overall length is 2.559 inches (65.00mm) with a width of 1.083 inches (27.51mm) and a thickness of 0.138 inches (3.51mm). Constructed from copper with a tin contact finish, this connector utilizes a crimp termination method and is suitable for free hanging (in-line) mounting. Commonly employed in power distribution and electrical connection applications within the automotive and industrial sectors. Supplied in bulk packaging.
Additional Information
Series: LCMAXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 95mm² |
| Insulation | Non-Insulated |
| Thickness | 0.138"" (3.51mm) |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M10 Stud |
| Length - Overall | 2.559"" (65.00mm) |
| Termination | Crimp |
| Width - Outer Edges | 1.083"" (27.51mm) |
| Contact Material | Copper |
Request a Quote
Clients Also Buy

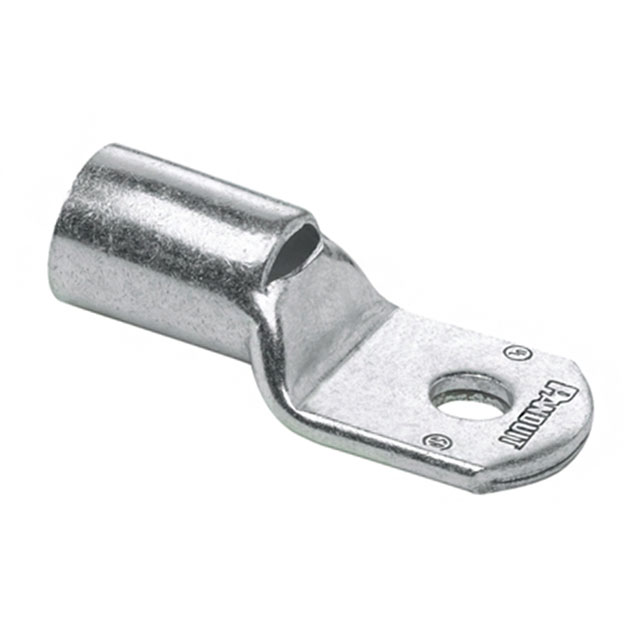

LCMAX10-10-C
