LCMA95-8H-L
CONN TERM RECT RING 95MM #M8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

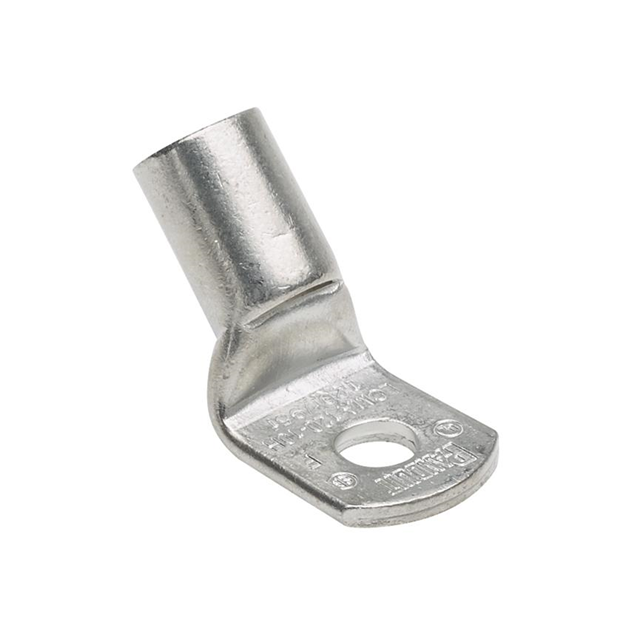

Panduit Corp Pan-Lug™ LCMA95-8H-L is a non-insulated, tubular ring terminal connector designed for crimp termination of 95mm² wire. Featuring a flat-sided, tubular construction suitable for battery lug applications, this component is engineered with a copper contact material and a tin contact finish for optimal conductivity and corrosion resistance. The connector is specified for M8 stud size and offers mounting flexibility with free hanging (in-line) and 45° angle options. Its overall width across outer edges is 0.965" (24.51mm). This Panduit Corp Pan-Lug™ terminal is utilized in demanding applications within the power distribution and renewable energy sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 95mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M8 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.965"" (24.51mm) |
| Contact Material | Copper |
