LCMA50-8H-L
CONN TERM RECT RING 50MM #M8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

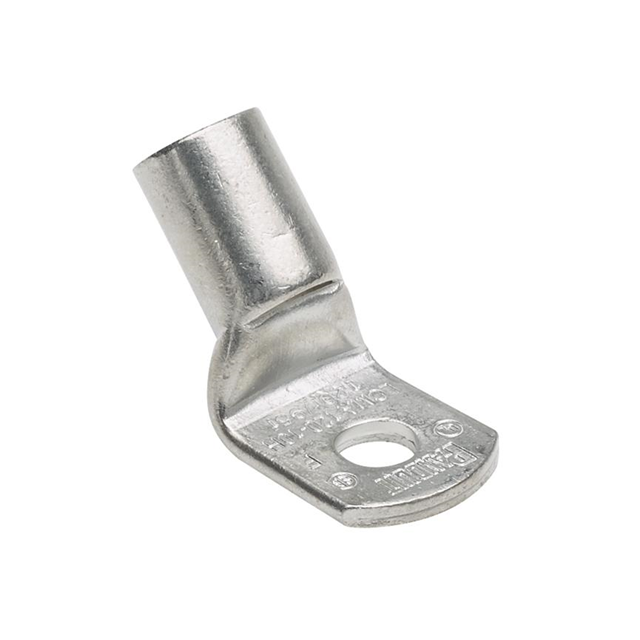

Panduit Corp Pan-Lug™ LCMA50-8H-L is a non-insulated, tubular ring terminal connector designed for robust electrical connections. Featuring a flat-sided profile and M8 stud size, this component is engineered for 50mm² wire gauge applications. The tin-plated copper contact material ensures excellent conductivity and corrosion resistance. Termination is achieved via crimp, providing a secure mechanical bond. This component is commonly utilized in battery lug applications and is suitable for various industrial power distribution systems. The bulk packaging facilitates efficient inventory management for high-volume procurement.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 50mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M8 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.709"" (18.00mm) |
| Contact Material | Copper |
