LCMA50-6H-L
CONN TERM RECT RING 50MM #M6Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

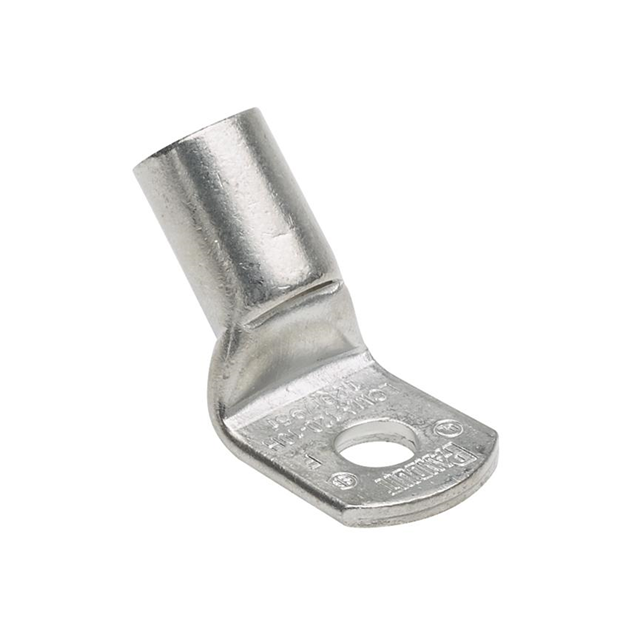

The Panduit Corp Pan-Lug™ LCMA50-6H-L is a non-insulated, flat-sided, tubular ring terminal designed for demanding electrical applications. This component features a robust copper contact material with a tin finish for excellent conductivity and corrosion resistance. Engineered for 50mm² wire gauge, it accommodates an M6 stud size, ensuring secure connections in high-current environments. The terminal's tubular construction, suitable for battery lug applications, is terminated via crimping for reliable mechanical and electrical integrity. Mounting is versatile, supporting free-hanging (in-line) configurations as well as a 45° angle. This component is utilized across industries such as power generation, industrial automation, and electric vehicle systems where high-capacity power distribution is critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 50mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M6 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.709"" (18.00mm) |
| Contact Material | Copper |
