LCMA50-10H-L
CONN TERM RECT RING 50MM #M10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

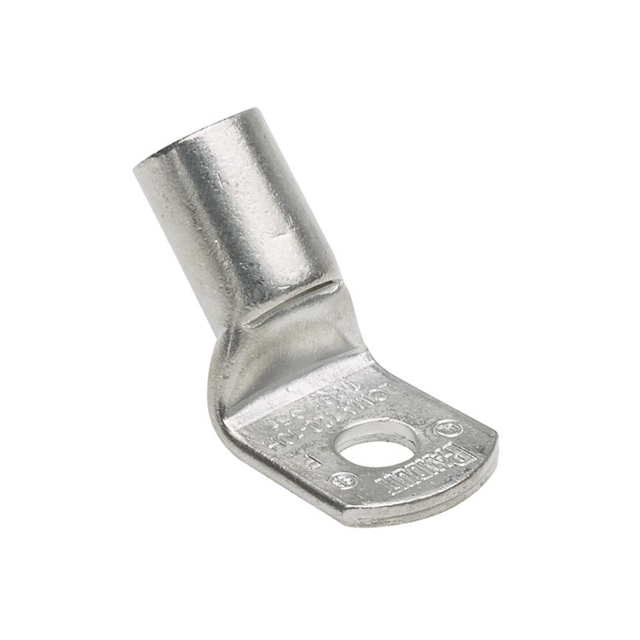

Panduit Corp Pan-Lug™ LCMA50-10H-L is a non-insulated, flat-sided, tubular ring terminal connector designed for robust electrical connections. This component features a M10 stud size and is engineered for crimp termination of 50mm² wire gauge. Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The LCMA50-10H-L is suitable for applications requiring high current capacity and reliable mechanical strength, commonly found in power distribution, industrial automation, and heavy equipment manufacturing. Its design facilitates secure mounting in free-hanging or 45° inline configurations.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 50mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M10 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.709"" (18.00mm) |
| Contact Material | Copper |
Request a Quote
