LCMA35-10H-C
CONN TERM RECT RING 35MM #M10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

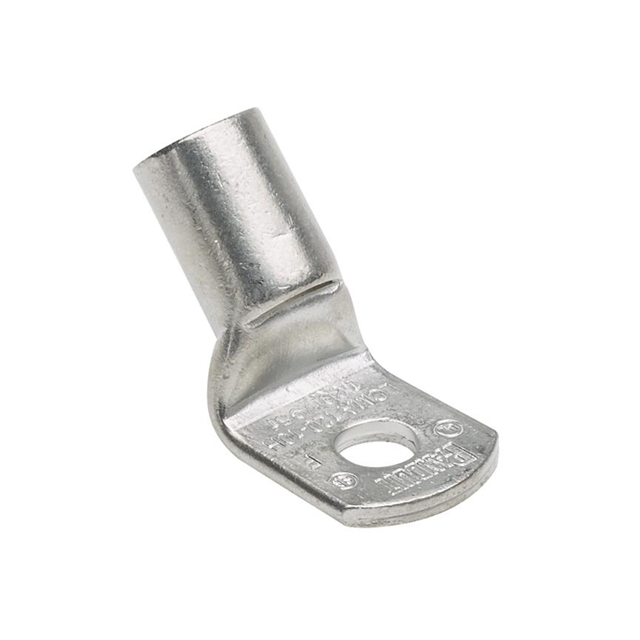

Panduit Corp Pan-Lug™ LCMA35-10H-C is a non-insulated tubular ring terminal designed for robust electrical connections. This component features a 35mm² wire gauge capacity and is terminated via crimp. The M10 stud size ensures secure mounting, and the tin-plated copper contact material provides excellent conductivity and corrosion resistance. Its flat-sided, tubular construction is optimized for battery lug applications. The LCMA35-10H-C offers versatile mounting options, including free hanging (in-line) and a 45° angle configuration. This terminal is commonly utilized in industrial power systems and automotive applications where reliable, high-current connections are critical. Packaged in bulk for efficient large-scale deployment.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 35mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M10 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.610"" (15.49mm) |
| Contact Material | Copper |
