LCMA25-6H-C
CONN TERM RECT RING 16MM #M6Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

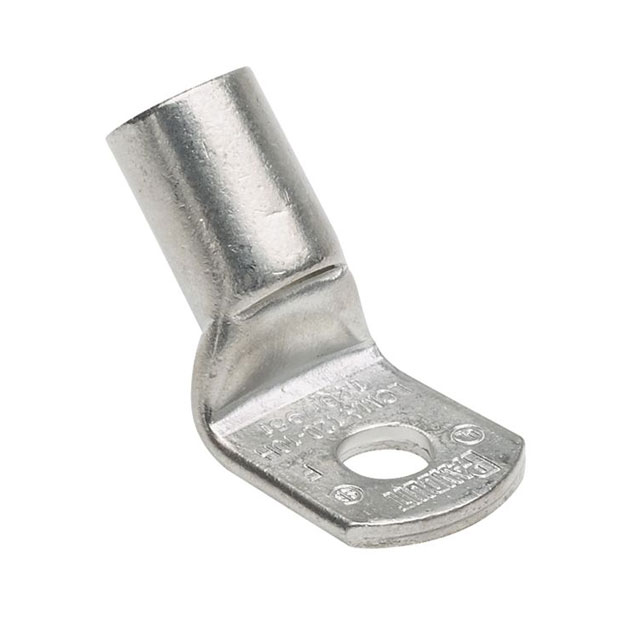

Panduit Corp Pan-Lug™ LCMA25-6H-C is a non-insulated, tubular ring terminal connector designed for reliable crimp termination. This component features a flat-sided, battery lug terminal type suitable for M6 stud sizes. Constructed from copper with a tin contact finish, it ensures excellent conductivity. The terminal is specified for 16mm² wire gauge and offers versatile mounting options, including free hanging (in-line) and a 45° angle. Its overall width across outer edges is 0.551 inches (14.00mm). This component is frequently utilized in power distribution, battery connections, and heavy-duty electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 16mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M6 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.551"" (14.00mm) |
| Contact Material | Copper |
