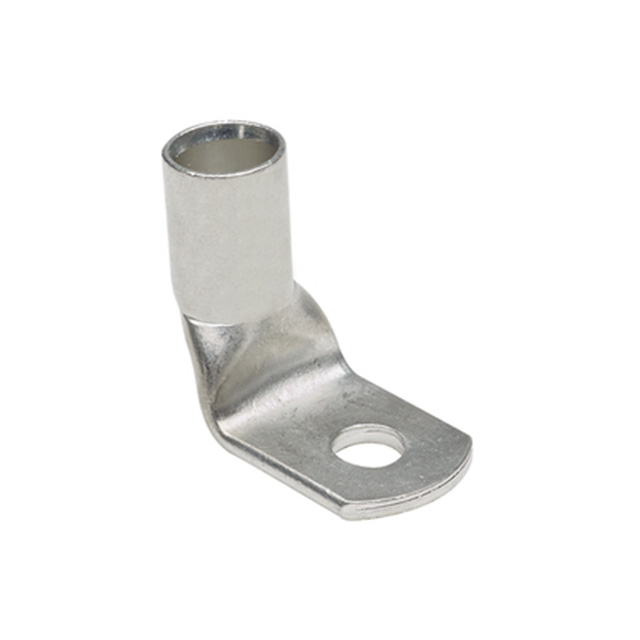

LCMA150-16F-X
CONN TERM RECT RING 150MM #M16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCMA150-16F-X is a non-insulated ring terminal connector designed for robust electrical connections. This flat-sided, tubular terminal, often referred to as a battery lug, is engineered for 150mm² wire gauge applications, accommodating an M16 stud size. The connector features a tin contact finish for reliable conductivity and is suitable for crimp termination with a flag configuration. Its construction facilitates a free-hanging or right-angle mounting type. This component is utilized in demanding sectors such as automotive, industrial power distribution, and renewable energy systems where high current carrying capacity and secure termination are critical. The bulk packaging option is suitable for high-volume integration.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 150mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M16 Stud |
| Length - Overall | - |
| Termination | Crimp, Flag |
| Width - Outer Edges | 1.201"" (30.51mm) |
| Contact Material | Copper |
