LCMA120-8H-L
CONN TERM RECT RING 120MM #M8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

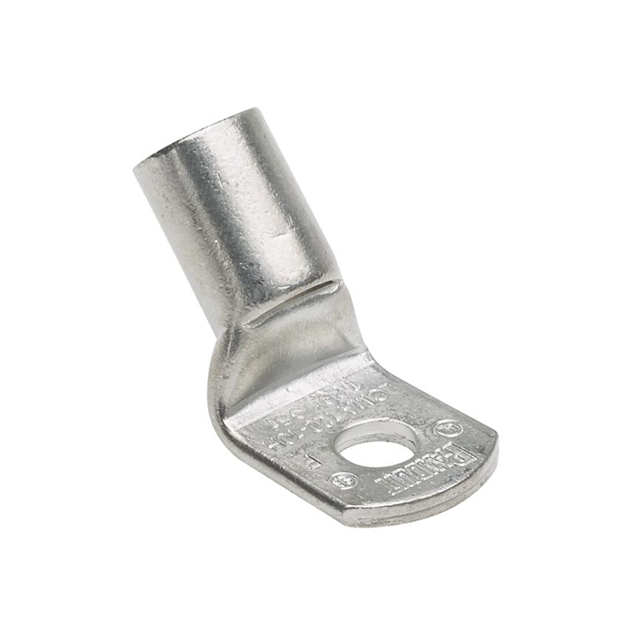

Panduit Corp Pan-Lug™ LCMA120-8H-L is a non-insulated, tubular ring terminal connector designed for high-current applications. Featuring a flat-sided, M8 stud configuration, this component is engineered for a 120mm² wire gauge, ensuring robust connectivity for demanding power management needs. The copper contact material with tin plating provides excellent conductivity and corrosion resistance. Manufactured for crimp termination, the LCMA120-8H-L offers reliable and secure connections in industrial power distribution, renewable energy systems, and electric vehicle charging infrastructure. Its robust construction is suitable for environments requiring durable and efficient power transmission.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 120mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M8 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 1.083"" (27.51mm) |
| Contact Material | Copper |
