LCMA10-8H-C
CONN TERM RECT RING 10MM #M8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

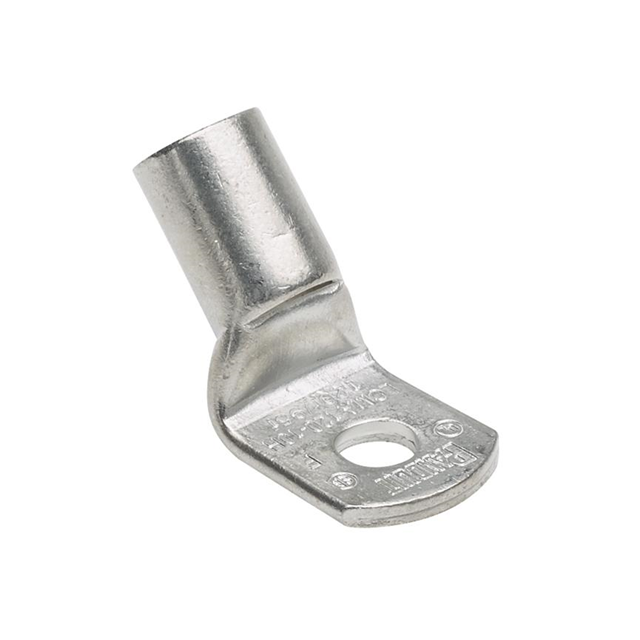

Panduit Corp Pan-Lug™ LCMA10-8H-C is a non-insulated, tubular ring terminal designed for robust electrical connections. This component features a flat-sided, M8 stud configuration suitable for battery lug applications and terminates via crimp. With a 10mm² wire gauge capacity and a tin contact finish on copper material, it ensures reliable conductivity and corrosion resistance. The terminal is engineered for free-hanging (in-line) mounting with an option for a 45° angle. Its overall width is 0.512" (13.00mm). This Panduit Corp component is commonly employed in power distribution and management systems across industries such as automotive, industrial automation, and renewable energy.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 10mm² |
| Insulation | Non-Insulated |
| Thickness | - |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Stud/Tab Size | M8 Stud |
| Length - Overall | - |
| Termination | Crimp |
| Width - Outer Edges | 0.512"" (13.00mm) |
| Contact Material | Copper |
