EV18-8RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

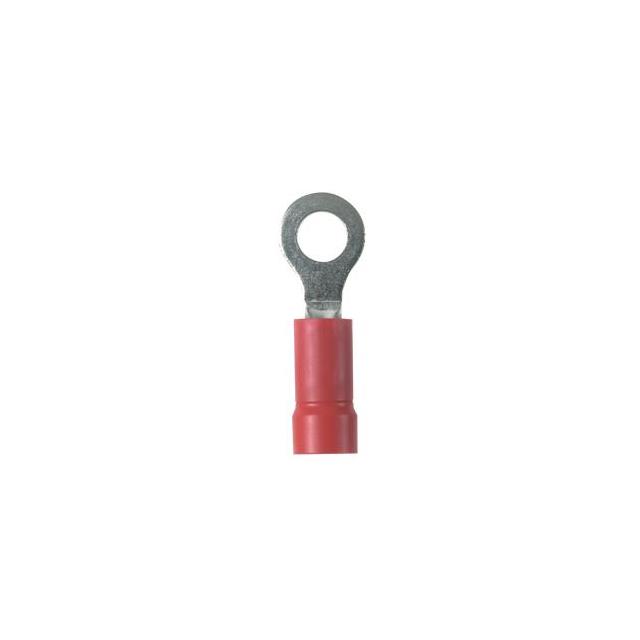

Panduit Corp StrongHold™ EV18-8RBK-Q is a red, insulated ring terminal designed for 18-22 AWG wire, featuring a tin-plated copper contact for reliable conductivity. This circular terminal utilizes a butted seam construction and is suitable for 8 stud mounting. Its overall length is 0.820 inches (20.83mm) with a width of 0.310 inches (7.87mm) and a thickness of 0.030 inches (0.76mm). The free hanging (in-line) mounting type and crimp termination ensure secure connections. This component is commonly found in industrial automation, telecommunications, and automotive applications where robust electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.820"" (20.83mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
