EV18-6RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

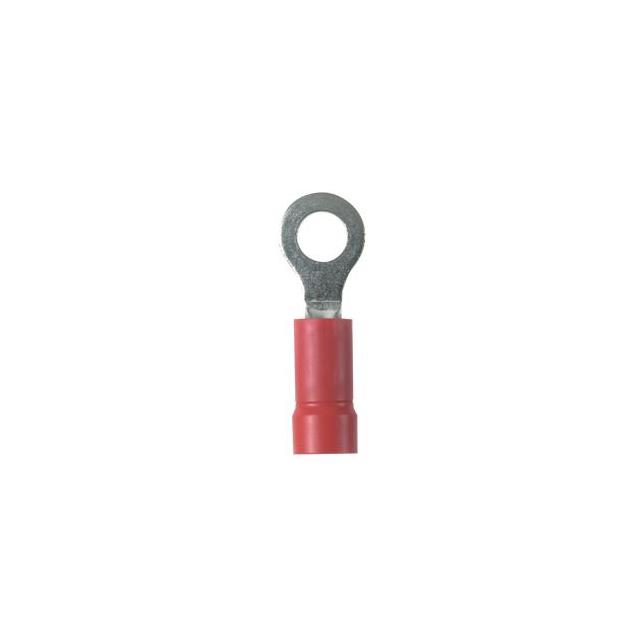

Panduit Corp StrongHold™ EV18-6RBK-Q is an insulated, circular ring terminal designed for reliable electrical connections. This component features a 6 Stud size and is engineered for 18-22 AWG wire gauges, utilizing a crimp termination method. The terminal is constructed from copper with a tin contact finish, ensuring excellent conductivity and corrosion resistance. Its vinyl insulation provides robust protection, and the butted seam construction enhances durability during application. With an overall length of 0.760 inches and a width of 0.260 inches, it offers a secure fit for various mounting configurations. The EV18-6RBK-Q is suitable for applications in the automotive, industrial automation, and telecommunications sectors where dependable wire termination is critical. This component is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.260"" (6.60mm) |
| Contact Material | Copper |
