EV18-6RBK-L
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

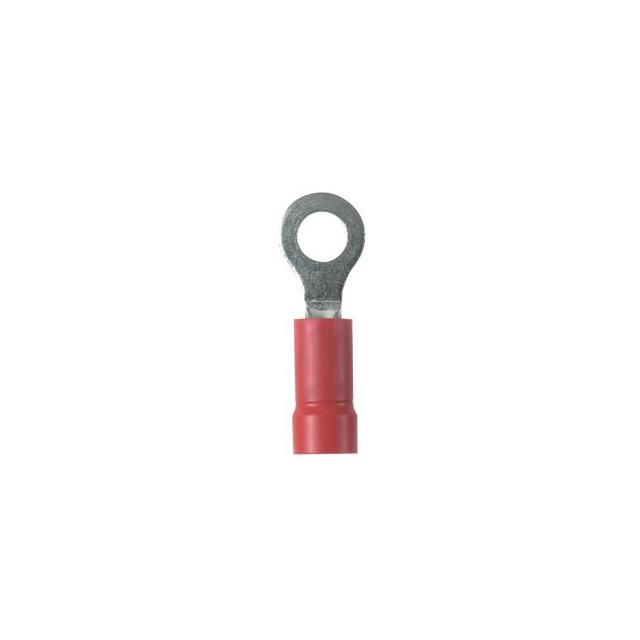

Panduit Corp StrongHold™ EV18-6RBK-L is a red, insulated circular ring terminal designed for reliable wire termination. This component features a butted seam construction and is manufactured from copper with a tin contact finish for optimal conductivity. It accommodates wire gauges from 18 to 22 AWG and includes a 6 stud size for secure mounting. The terminal's overall length is 0.760 inches (19.30mm) with a width of 0.260 inches (6.60mm) and a thickness of 0.030 inches (0.76mm). Its free hanging (in-line) mounting type and crimp termination method make it suitable for various applications, including industrial automation, automotive, and telecommunications. The EV18-6RBK-L is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.260"" (6.60mm) |
| Contact Material | Copper |
