EV18-56RB-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

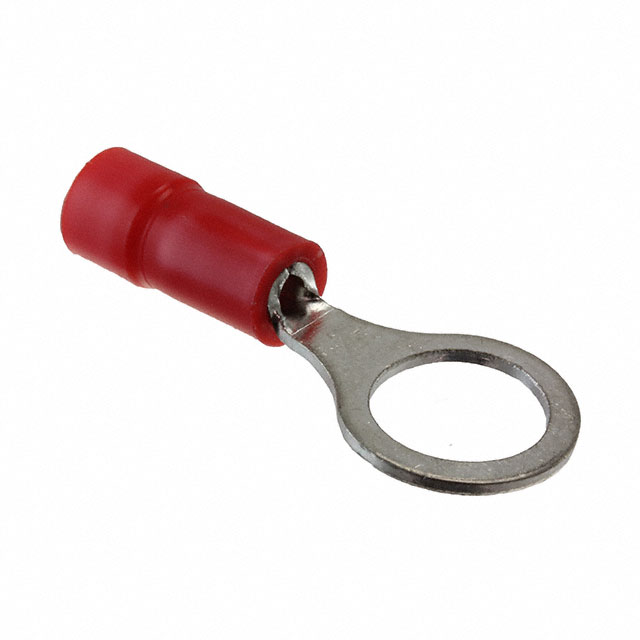

Panduit Corp StrongHold™ EV18-56RB-Q is an insulated circular ring terminal designed for reliable wire termination. This component accommodates 18-22 AWG wire gauges and features a 5/16 stud size for secure mounting. Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The terminal utilizes a butted seam construction for enhanced durability during crimping. With an overall length of 1.110 inches and a width of 0.460 inches, it is suitable for free hanging (in-line) applications. This component finds application in industrial automation, power distribution, and automotive sectors where robust electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.110"" (28.19mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
