EV18-56RB-L
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

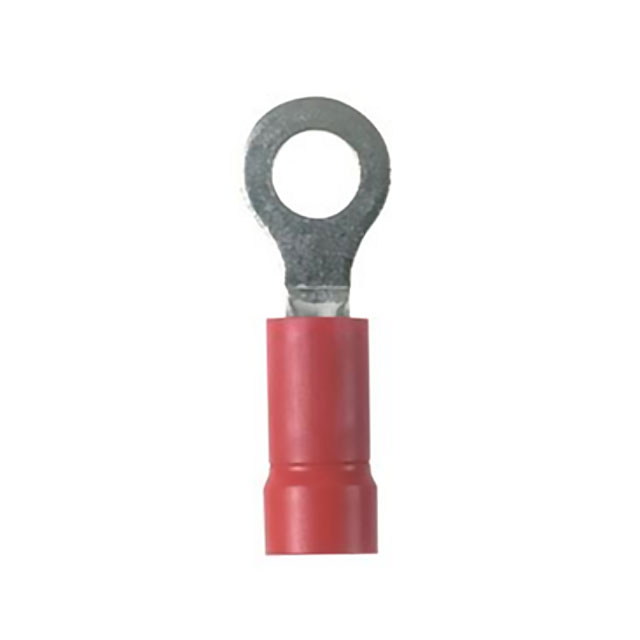

Panduit Corp StrongHold™ Ring Terminal, EV18-56RB-L. This insulated circular crimp terminal features a vinyl sleeve and a 5/16 stud size. Constructed from copper with a tin contact finish, it is designed for wire gauges from 18 to 22 AWG. The terminal utilizes a butted seam construction for reliable performance. With an overall length of 1.110 inches (28.19mm) and a thickness of 0.032 inches (0.81mm), it offers a 0.460 inch (11.68mm) outer edge width. The free-hanging mounting type makes it suitable for in-line applications. This component is commonly utilized in industrial automation and electrical infrastructure sectors. Packaging is provided in bulk.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.110"" (28.19mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
