EV18-10RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

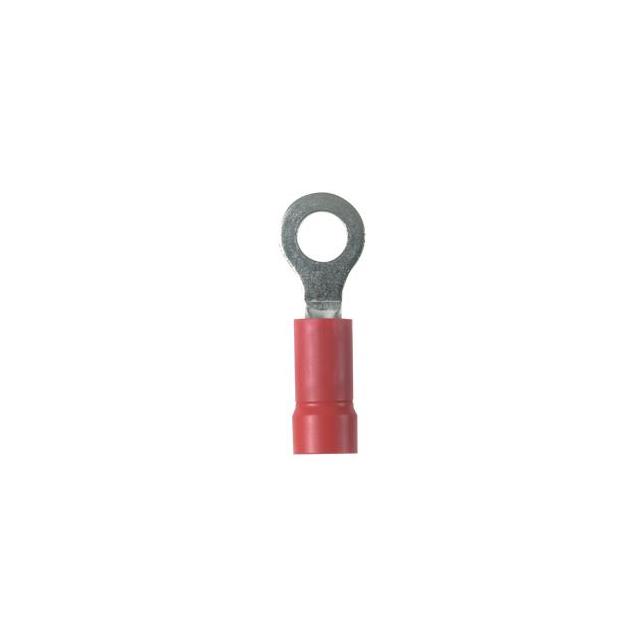

Panduit Corp StrongHold™ EV18-10RBK-Q is a red, insulated ring terminal connector. Designed for crimp termination, this component accommodates wire gauges from 18 to 22 AWG, featuring a 10 stud circular mounting configuration. The terminal boasts a tin contact finish over a copper contact material, with a butted seam construction for enhanced reliability. Its overall length is 0.820 inches (20.83mm), with a width of 0.310 inches (7.87mm) and a thickness of 0.030 inches (0.76mm). The mounting type is free hanging (in-line). This component is widely utilized in industrial automation, telecommunications, and transportation sectors. Supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.820"" (20.83mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
