EV18-10RBK-L
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

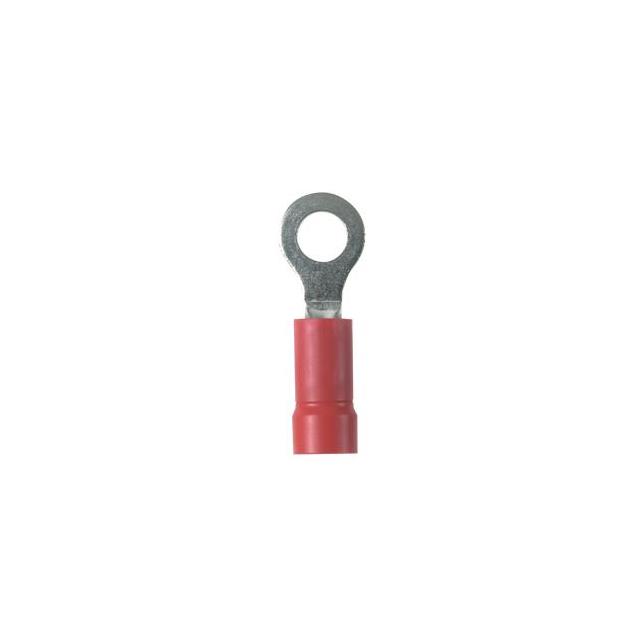

The Panduit Corp StrongHold™ EV18-10RBK-L is a red, insulated ring terminal designed for 18-22 AWG wire. This circular terminal features a 10 stud size and is constructed from copper with a tin contact finish. The terminal employs a butted seam for enhanced durability and a vinyl insulation for robust protection. Its free-hanging, in-line mounting type and crimp termination make it suitable for various electrical connection applications. The overall length is 0.820 inches (20.83mm) with a thickness of 0.030 inches (0.76mm) and an outer width of 0.310 inches (7.87mm). This Panduit Corp component is commonly utilized in industrial automation, telecommunications, and automotive sectors. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.820"" (20.83mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
