EV14-8RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

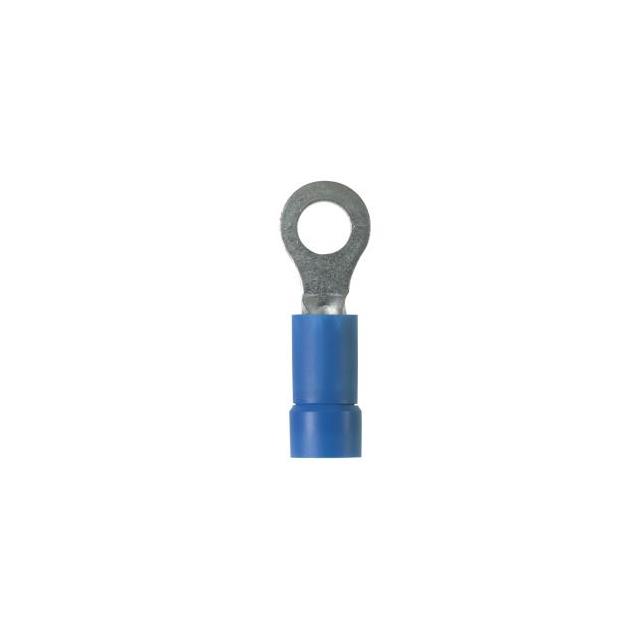

Panduit Corp StrongHold™ EV14-8RBK-Q is a blue, insulated ring terminal connector designed for 14-16 AWG wire. This circular terminal features a tin-plated copper contact material and a butted seam construction for reliable crimp termination. With an 8 stud size and a free-hanging, in-line mounting type, it offers a secure connection. The overall length is 0.860 inches (21.84mm) with a thickness of 0.032 inches (0.81mm) and an outer width of 0.330 inches (8.38mm). This component is commonly utilized in industrial automation, automotive, and electrical distribution systems. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.860"" (21.84mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.330"" (8.38mm) |
| Contact Material | Copper |
