EV14-6RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

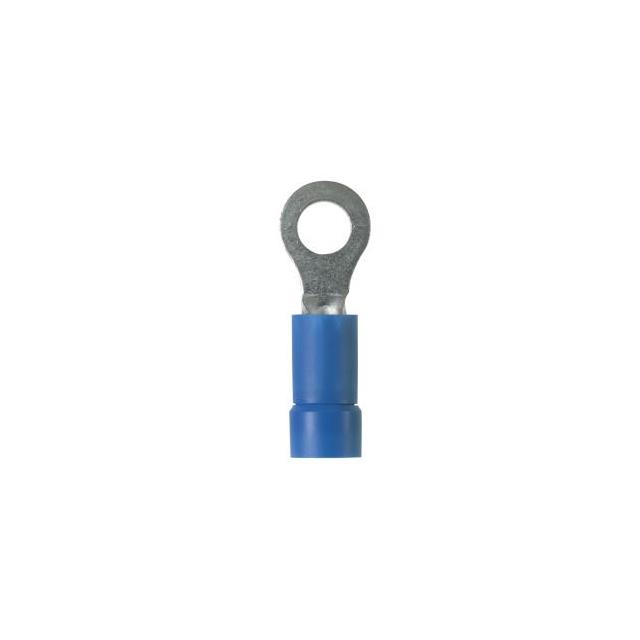

Panduit Corp StrongHold™ EV14-6RBK-Q is a blue, insulated ring terminal designed for 14-16 AWG wire. This circular terminal features a 6 stud size and is constructed with a copper contact material and tin contact finish. The butted seam construction ensures reliable performance. The terminal has an overall length of 0.860 inches (21.84mm) and a width of 0.330 inches (8.38mm), with a material thickness of 0.032 inches (0.81mm). It is suitable for free hanging (in-line) mounting and terminates via crimp. This component is commonly utilized in industrial automation, power distribution, and electrical infrastructure applications. The product is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.860"" (21.84mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.330"" (8.38mm) |
| Contact Material | Copper |
