EV14-56RB-L
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

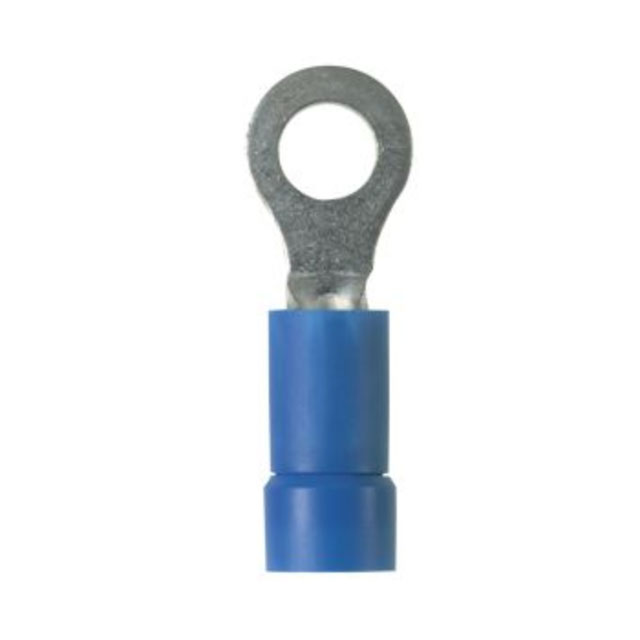

Panduit Corp StrongHold™ EV14-56RB-L is a blue, insulated ring terminal designed for reliable electrical connections. This circular terminal accommodates wire gauges from 14 to 16 AWG and features a 5/16 stud size for secure mounting. Constructed from copper with a tin contact finish, it utilizes a butted seam construction for enhanced durability. The overall length is 1.120 inches (28.45mm) with an outer width of 0.460 inches (11.68mm) and a thickness of 0.032 inches (0.81mm). The free-hanging (in-line) mounting type and crimp termination method ensure efficient assembly in demanding environments. This component is commonly found in industrial automation, power distribution, and automotive applications where robust wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.120"" (28.45mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
