EV14-10RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

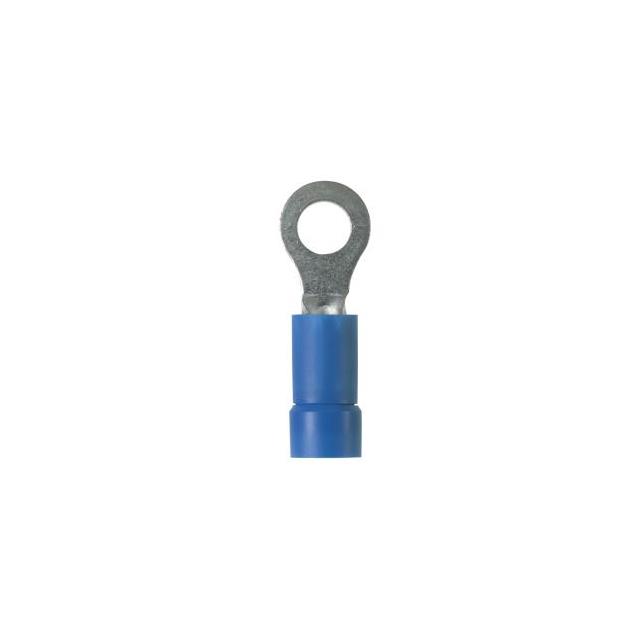

Panduit Corp StrongHold™ Ring Terminal, EV14-10RBK-Q. This insulated, blue vinyl-insulated circular terminal is designed for 14-16 AWG wire. Featuring a tin-plated copper construction with a butted seam, it offers robust connectivity. The terminal is engineered for a 10 stud size and utilizes a crimp termination method. With an overall length of 0.860 inches and a width of 0.330 inches, it provides a secure, free-hanging (in-line) mounting solution. The contact material is copper, and the contact finish is tin, ensuring durability and reliable electrical contact. This bulk-packaged component is suitable for applications in industrial automation, telecommunications, and automotive sectors.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.860"" (21.84mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.330"" (8.38mm) |
| Contact Material | Copper |
