EV14-10RBK-L
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

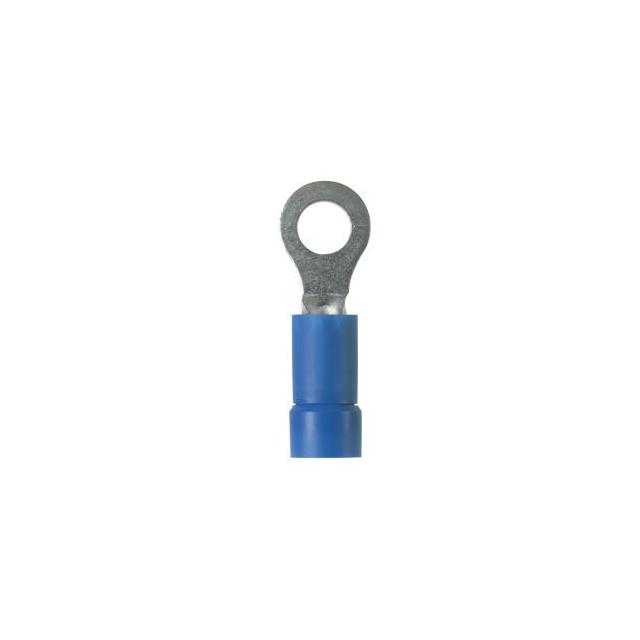

The Panduit Corp StrongHold™ EV14-10RBK-L is a blue, insulated ring terminal designed for reliable wire termination. This circular terminal, featuring a butted seam construction, is suitable for wire gauges ranging from 14 to 16 AWG. It accommodates a 10 stud size and utilizes a crimp termination method. The terminal is constructed from copper with a tin contact finish, ensuring excellent conductivity. With an overall length of 0.860 inches (21.84mm) and a thickness of 0.032 inches (0.81mm), it offers a secure connection. The free-hanging (in-line) mounting type makes it versatile for various applications. This component is commonly employed in industrial automation, telecommunications, and power distribution systems. The EV14-10RBK-L is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.860"" (21.84mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.330"" (8.38mm) |
| Contact Material | Copper |
