EV10-8RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

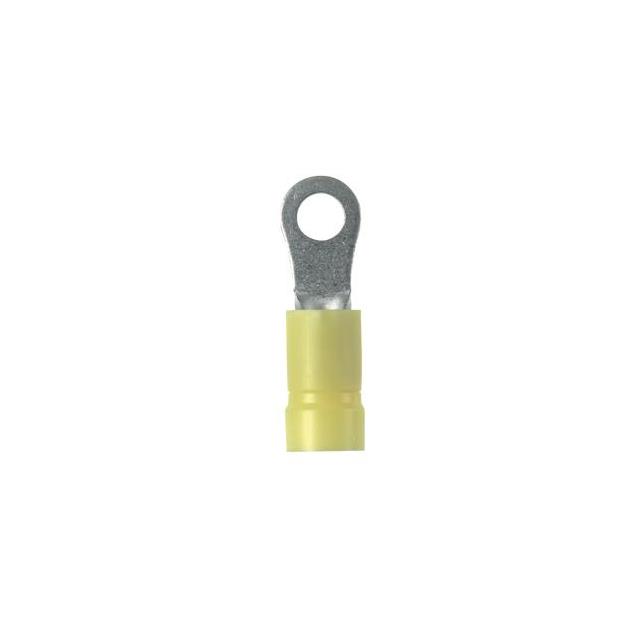

Panduit Corp StrongHold™ Ring Terminal, EV10-8RBK-Q, is a yellow, insulated, circular crimp terminal designed for 10-12 AWG wire. Featuring a butted seam construction and a tin-plated copper contact material, this terminal is rated for an 8 stud size. The overall length is 0.890 inches (22.61mm) with a thickness of 0.040 inches (1.02mm) and an outer width of 0.280 inches (7.11mm). Its free hanging mounting type makes it suitable for various applications across industrial automation, telecommunications, and automotive sectors. This component is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
