EV10-6RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

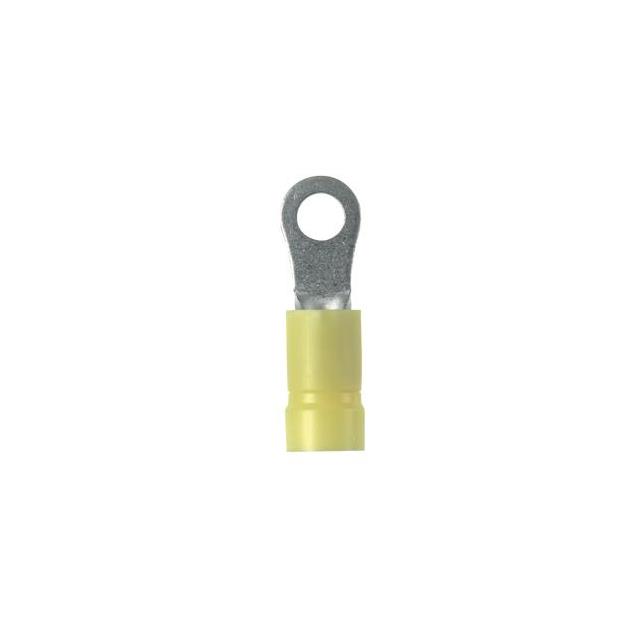

Panduit Corp StrongHold™ EV10-6RBK-Q is a yellow, insulated ring terminal designed for reliable electrical connections. This component features a circular terminal type with a 6 stud size and a 10-12 AWG wire gauge capacity. Manufactured from copper with a tin contact finish, it utilizes a butted seam construction for enhanced durability. The terminal is suitable for crimp termination and offers a free hanging (in-line) mounting type. Its overall length is 0.890 inches (22.61mm) with a width of 0.280 inches (7.11mm) and a thickness of 0.040 inches (1.02mm). This component is commonly utilized in industrial automation, power distribution, and telecommunications applications. Packaged in bulk, the EV10-6RBK-Q provides a robust solution for demanding electrical installations.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
